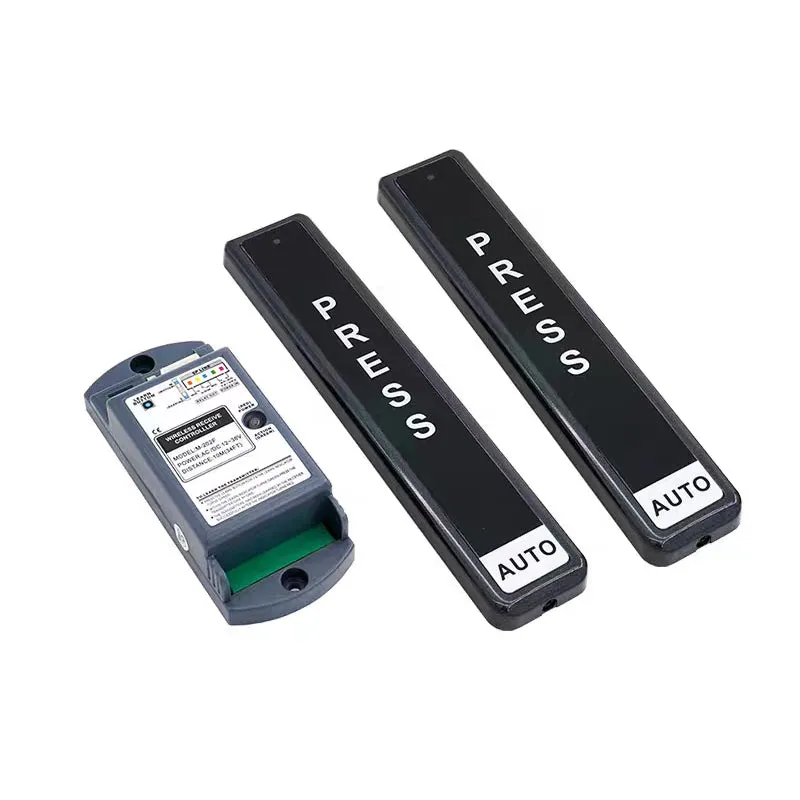

Automatic Door Wireless Touch Button
Product application
High sensitivity FM wireless touch switch is widely used in various types of autodoor and access controller, the wireless touch switch uses wireless wave to transmit signals and autodoor can operate when touching this switch, especially applicable for occasions that embedding wiring is inconvenient. The self-learning sensing is adopted to facilitate user to add any touch switch at any time.General characteristics
- The receiver is provided with a wide input voltage and both AC and DC12-36V power inputs are effective;
-
ADOPT uniformity frequency,high stability of wireless signal receiving and sending;
-
Panel pushing with low-power consumption,long service life battery;
-
Siludification of PU varnished shell,dapper appearance with anti-off screw;
-
With large capacity output,available to be used with autodoor,electric lockand access controller;
-
Three point of trigger pressing design to ensure the effective action.
Technical Specifications
|

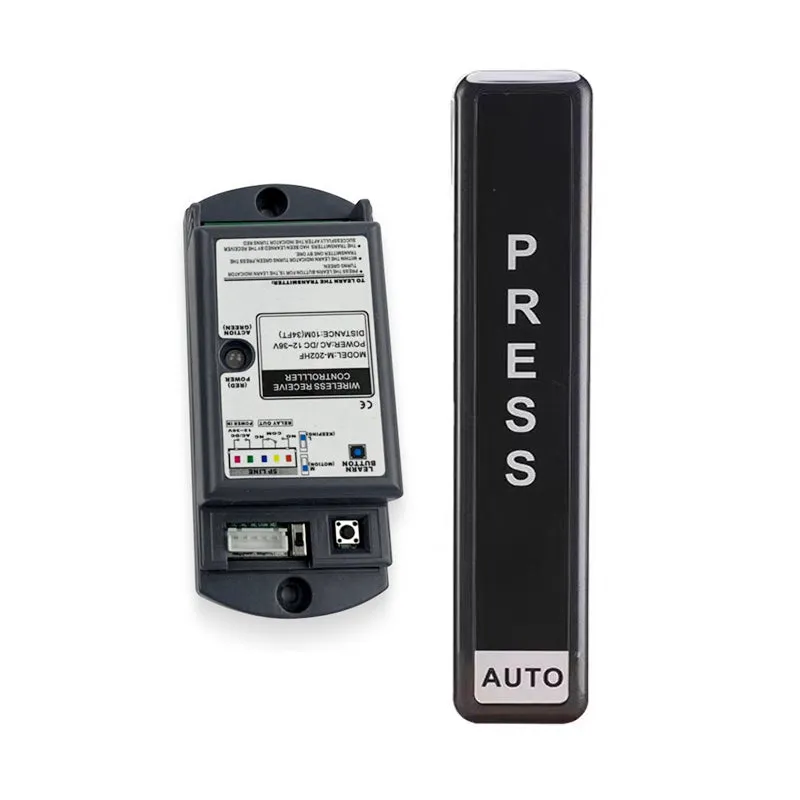

Wireless Receiver |
Relay contact capacity |
20A 14V DC | |
|
Power supply |
AC/DC 12-36V | Dimension: | 123(L)x50(W)x32(H)mm |
|
Static current |
15mA | Action current | 80mA(DC12V power) |
|

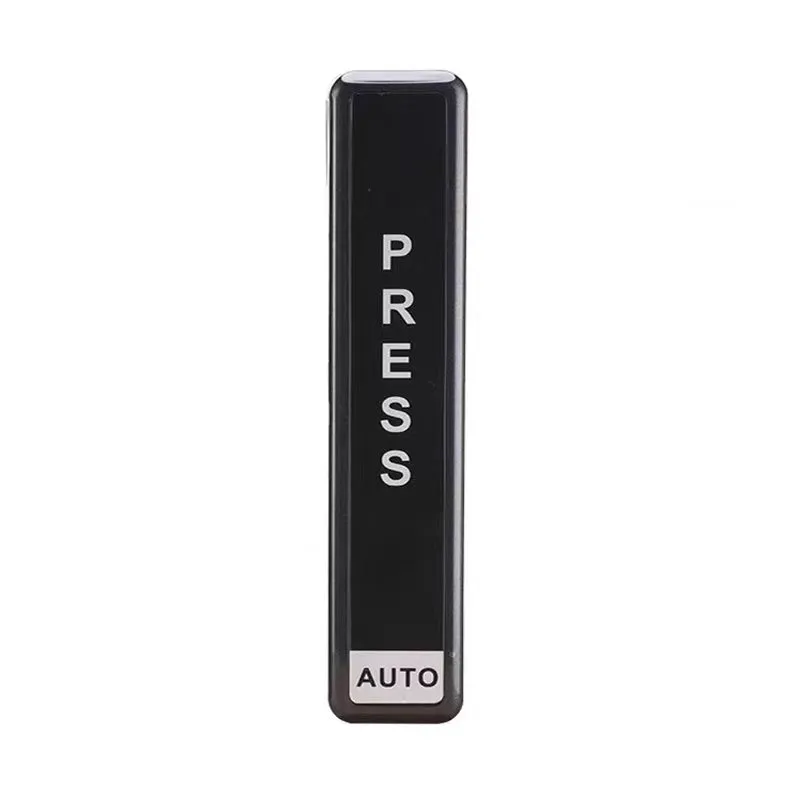

Wireless Transmitter |
|||
| Power supply | 6V(2pcs 3V button cells) | Emission current |
3.9mA |
| Life of battery | more than 20000 times | Transmit distance | more than 25m |
| Operation Temp. | -42 to 45°C | Operation humidity | 10-90%RH |
| Dimension | 203Lx41Wx12.5mmH |
